Adding a Column of Untyped XML

SQL Server can produce XML from a query, and it now can also store XML in a single column. Because XML is a first-class data type within SQL Server 2005, adding a new column to the Customers table of the Northwind Database is straightforward. You can use any SQL Server management tool you like. I use the SQL Server Management Studio Express, a free download that can be used with any SQL SKU (including the free SQL Express 2005). Bring up your Query Analyzer or Management Studio Express and, with the Northwind database selected, execute the following query.

use Northwind;
BEGIN TRANSACTION
GO
ALTER TABLE dbo.Customers ADD
 Notes xml NULL
GO
COMMIT

Note the xml type keyword after Notes in the preceding example. If an XML Schema were already added to the database, you could add this new column and associate it with a named Schema Collection all at once using this syntax.

use Northwind;
BEGIN TRANSACTION
GO
ALTER TABLE dbo.Customers ADD
 Notes xml(DOCUMENT dbo.NorthwindCollection)
 GO
COMMIT

Here the word DOCUMENT indicates that the column will contain a complete XML document. Use CONTENT to store fragments of XML that don't contain a root note. You haven't added a schema yet, so that's the next step. So far, you've added a Notes column to the Customers table that can be populated with prose. For example, a customer service representative could use it to describe interactions she's had with the customer, entering text into a theoretical management system.

Adding an XML Schema

Although the user could store untyped XML data in the Notes field, you should really include some constraints on what's allowed. XML data can be stored typed or untyped, as a fragment with no root note or as a document. Because you want store Customer interaction data entered and viewed from a Web site, ostensibly containing prose, XHTML is a good choice.

XML data is validated by XML Schemas, as I say earlier in the chapter. However, SQL Server 2005 is a database, not a file system. It needs to store the schemas you want to reference in a location it can get to. You add a schema or schemas to SQL Server 2005 using queries formed like this:

CREATE XML SCHEMA COLLECTION
	YourCollection AS 'your complete xml schema here'

You'll be using the XHTML 1.0 Strict schema located on the W3C Web site shown here: w3.org/TR/xhtml1-schema/#xhtml1-strict. Copy the entire schema to a file, or download the schema directly from w3.org/2002/08/xhtml/xhtml1-strict.xsd.

When executing your query, you include the entire XSD inline in your schema. However, you should watch for few things. First, escape any single quotes so that ' becomes ''-that is, two single quotes, NOT one double-using a search and replace. Second, because SQL 2005 uses the MSXML6 XML parser to parse its XML, take into consideration a limitation in that parser. MSXML6 already has the xml: namespace prefix and associated namespace hard-coded internally, so you should remove the line from your schema that contains that namespace. This little oddity is documented, but buried within MSDN at http://msdn2.microsoft.com/ms177489(en-US,SQL.90).aspx and only applies to a few predefined schemas like this one that uses the xml: prefix and/or the http://www.w3.org/XML/1998/namespace namespace. In the fragment that follows, I've boldfaced the line you need to remove.

Use Northwind;
CREATE XML SCHEMA COLLECTION NorthwindCollection AS
'<?xml version="1.0" encoding="UTF-8"?>
<xs:schema version="1.0" xml:lang="en"
    xmlns:xs="http://www.w3.org/2001/XMLSchema"
    targetNamespace="http://www.w3.org/1999/xhtml"
    xmlns="http://www.w3.org/1999/xhtml"
    xmlns:xml="http://www.w3.org/XML/1998/namespace"
    elementFormDefault="qualified">
...the rest of the schema has been omitted for brevity...
</xs:schema>';

Instead, you want to execute a query like this, noting the single quote and semicolon at the very end.

Use Northwind;
CREATE XML SCHEMA COLLECTION NorthwindCollection AS
'<?xml version="1.0" encoding="UTF-8"?>
<xs:schema version="1.0" xml:lang="en"
    xmlns:xs="http://www.w3.org/2001/XMLSchema"
    targetNamespace="http://www.w3.org/1999/xhtml"
    xmlns="http://www.w3.org/1999/xhtml"
    elementFormDefault="qualified">
...the rest of the schema has been omitted for brevity...
</xs:schema>';

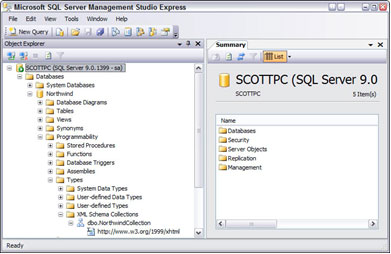

You may get a few schema validation warnings when you execute this query because of the complexity of the XHTML schema, but you can ignore them. Figure 1 shows the new NorthwindCollection schemas added to the Northwind database.

Figure 1
Figure 1

Although Figure 1 shows the NorthwindCollection within the Object Explorer, you can also confirm that your schema has been added correctly using SQL, as shown in the example that follows:

Use Northwind;
SELECT XSN.name
FROM    sys.xml_schema_collections XSC
    JOIN sys.xml_schema_namespaces XSN ON
        (XSC.xml_collection_id = XSN.xml_collection_id)

The output of the query is something like the following. You can see that the XHTML namespace appears at the end along with the schemas that already existed in the system.

http://www.w3.org/2001/XMLSchema
http://schemas.microsoft.com/sqlserver/2004/sqltypes
http://www.w3.org/XML/1998/namespace
http://www.w3.org/1999/xhtml

Next you should associate the new column with the new schema collection. Using the Management Studio, you create one composite script that automates this process. In this case, however, you can continue to take it step by step so you see what's happening underneath.

Associating a XML Typed Column with a Schema

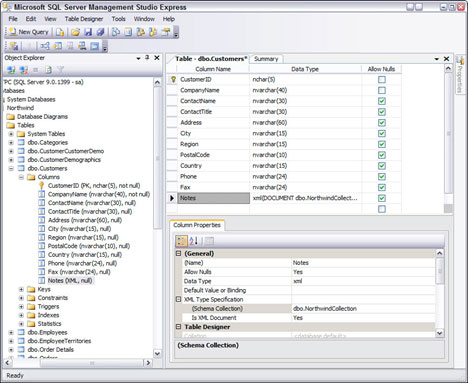

You can use the Microsoft SLServer Management Studio Express to associate the NorthwindCollection with the new Notes column. Open the Customers table of the Northwind Database and, within its Column collection, right-click and select Modify. Select the Notes column as shown in Figure 2. Within the Notes column's property page, open the XML Type Specification property and select the NorthwindCollection from the Schema Collection dropdown. Also, set the Is XML Document property to Yes.

At this point, you can save your table and a change script is generated and executed. If you want to see and save the change script after making a modification but before saving the changes, right-click in the grid and select Generate Change Script. Click the Save toolbar button or Ctrl-S to commit your changes to the Customers Table.

Figure 2
Figure 1

Now that you've added a new Notes column and associated it with an XHTML schema, you're ready to add some data to an existing row.

Inserting XML Data into an XML Column

You start by adding some data to a row within the Northwind database's Customer table. Add some notes to the famous first row, the customer named Alfreds Futterkiste, specifically CustomerID ALFKI. You add or update data to a column with the XML type just as you add to any datatype. For example, you can try an UPDATE query.

Use Northwind;
UPDATE Customers
SET Notes = N'<HTML></HTML>' WHERE CustomerID = 'ALFKI';

Upon executing this query, you get this result:

Msg 6913, Level 16, State 1, Line 1
XML Validation: Declaration
not found for element 'HTML'. Location: /*:HTML[1]

What's this? Oh, yes, you associated a schema with the XML column so the included document must conform, in this case, to the XHTML specification. Now, try again with a valid XHTML document that includes a correct namespace.

Use Northwind;
UPDATE Customers SET Notes = N'
<html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en">
 <head>
  <title>Notes about Alfreds</title>
 </head>
 <body>
  <p>He is a nice enough fellow.</p>
 </body>
</html>'
WHERE CustomerID = 'ALFKI';

Execute this corrected query and you see a success message.

(1 row(s) affected)

After you've typed a column as XML and associated an XML Schema, SQL Server 2005 will allow only XML documents that validate. The data can be retrieved from SQL Server using standard System.Data techniques. It can be pulled out of DataReaders or DataSet and manipulated with XmlReaders or as an XmlDocument.
